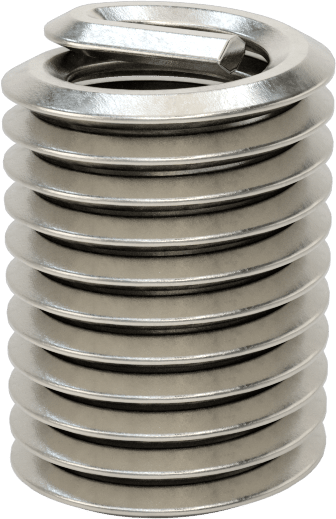

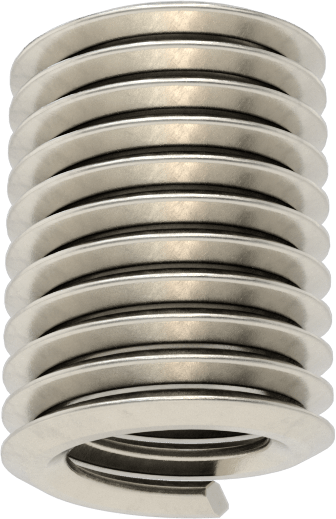

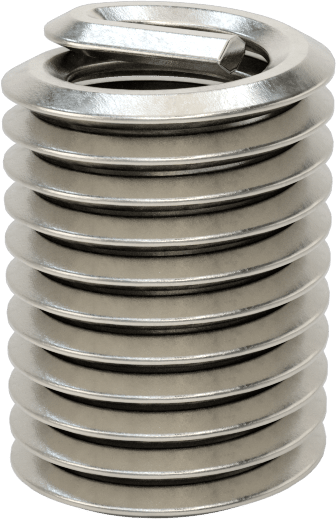

HELICAL INSERT 10-32 X 0.38 (2D) STAINLESS STEEL

HELICAL INSERT 10-32 X 0.38 (2D) STAINLESS STEEL
Images for general purposes only. Actual may be different than depicted.
HELICAL INSERT 10-32 X 0.38 (2D) STAINLESS STEEL HELICAL INSERT 10-32 X 0.38 (2D) STAINLESS STEEL

HELICAL INSERT 10-32 X 0.38 (2D) STAINLESS STEEL

SKU: MS124735
Rating:
See below REQUEST FOR A QUOTE to get our current pricing
Login to view price
0
$0.00
0
$0.00
0
MS124735
HELICAL INSERT 10-32 X 0.38 (2D) 304 STAINLESS STEEL Alt: 1191-3CN380, MS21208F1-20

Heli-Coil inserts, these inserts have coils that expand once installed to securely anchor the insert. All have a prong for ease of installation. An installation tool grips the prong and reduces the coil diameter, enabling the insert to fit in tapped holes. Remove the prong to insert the screw. Installation requires a drill bit, a helical insert tap, an installation tool, and a prong break-off tool.

Threaded Insert Type Helical
Helical Insert Style With Prong
Material 18-8 Stainless Steel
Passivation Not Passivated
System of Measurement Inch
Thread Direction Right Hand
Thread Size 10-32
Thread Type UNF
Thread Spacing Fine
For Tap Type Helical
Installed Length 0.38"
For Min. Material Thickness 0.38"
Drill Bit Size 13/64"
For Maximum Hole Diameter 13/64"
End Type Open
Specifications Met MS122-135
Country of Origin United States
