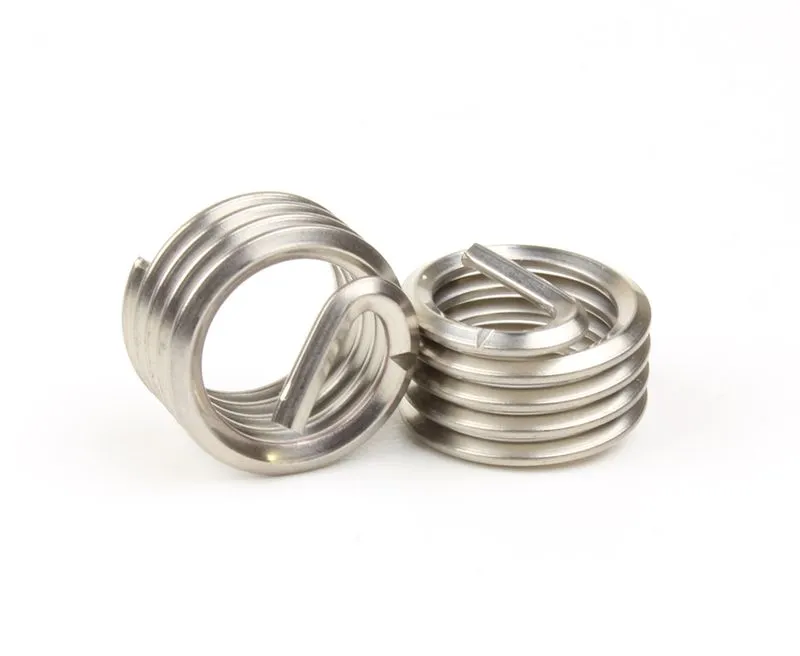

HELICAL INSERT, 8-32 x 0.164" 18-8 STAINLESS STEEL

HELICAL INSERT, 8-32 x 0.164" 18-8 STAINLESS STEEL
Images for general purposes only. Actual may be different than depicted.
HELICAL INSERT, 8-32 x 0.164" 18-8 STAINLESS STEEL

HELICAL INSERT, 8-32 x 0.164" 18-8 STAINLESS STEEL

SKU: MS122079
Rating:
See below REQUEST FOR A QUOTE to get our current pricing
Login to view price
0
$0.00
0
$0.00
0
MS122079
HELICAL INSERT, 8-32 x 0.164" 18-8 STAINLESS STEEL  Alt: JE718397

Heli-Coil inserts, these inserts have coils that expand once installed to securely anchor the insert. All have a prong for ease of installation. An installation tool grips the prong and reduces the coil diameter, enabling the insert to fit in tapped holes. Remove the prong to insert the screw. Installation requires a drill bit, a helical insert tap, an installation tool, and a prong break-off tool.

Thread Direction: Right-hand
Thread Length: 0.164 inches nominal
Length: 0.164 inches nominal
Insert Size: 0.205 in.min,0.220 in.max free outside dia
Thready Qty Per Inch (tpi): 32
Thread Size: 0.164 inches
Material: Steel corrosion resisting overall
Style Designator: Coil
Thread Series Designator: Unc
