EMANON PART NO.
MS15795-809B

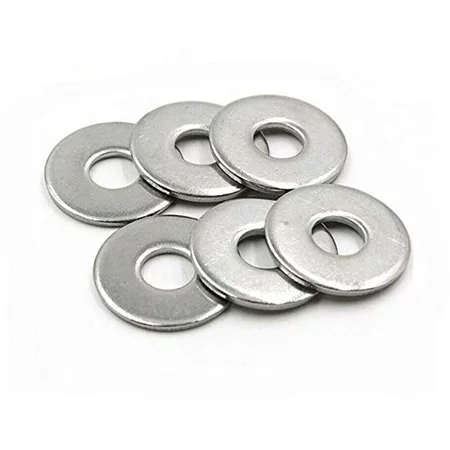

MS15795-809B is a washer in steel comp 302 overall or steel comp 303 overall or steel comp 304 overall, oxide film overall finish and 9/16 diameter.
Washer
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.250 in (1/4)
OUTSIDE DIAMETER0.557–0.577 in
THICKNESS0.078 in (5/64)
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALSteel comp 302 overall or steel comp 303 overall or steel comp 304 overall
MATERIAL SPECQQ-S-763 — FED SPEC · QQ-S-764 — FED SPEC · QQ-S-763 — FED SPEC
FINISHOxide film overall
FINISH SPECMIL-C-13924,CLASS 4
STANDARDS & TRACEABILITY
NSN5310-00-402-5797
FLIS · NSN 5310-00-402-5797 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Hole Diameter: 1/4", Diameter: 9/16", Thickness: 5/64", black oxide, MS15795 series washer
