EMANON PART NO.
MS16562-122

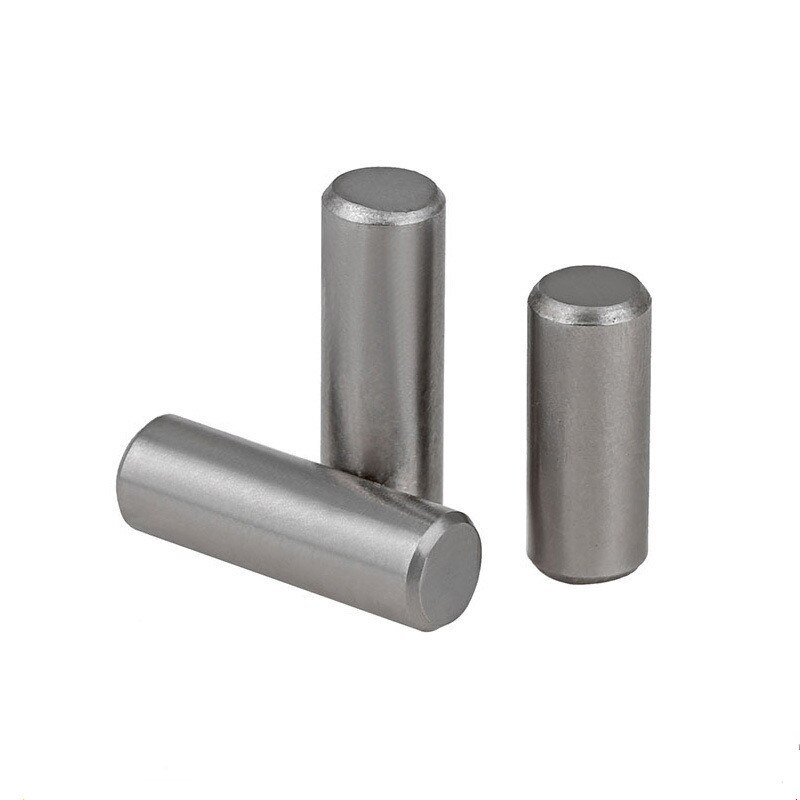

MS16562-122 is a pin in steel comp 1070 or steel comp 1074 or steel comp 1080 or steel comp 1086 or steel comp 1095, phosphate zinc finish and 0.099 INCHES MINIMUM AND 0.103 INCHES MAXIMUM diameter.
Pin
SPECIFICATIONS
KEY DIMENSIONS
DIAMETERMinimum 0.099 in; maximum 0.103 in
MATERIAL & FINISH
MATERIALSTEEL COMP 1070 OR STEEL COMP 1074 OR STEEL COMP 1080 OR STEEL COMP 1086 OR STEEL COMP 1095
FINISHPHOSPHATE ZINC
MECHANICAL
SHEAR STRENGTHDouble pound 1000
HARDNESSRockwell c minimum 46.0 and rockwell c maximum 53.0
FLIS · NSN 007102735 · retrieved 2026-09-16
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
MS16562-122
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
