EMANON PART NO.
MS16562-143

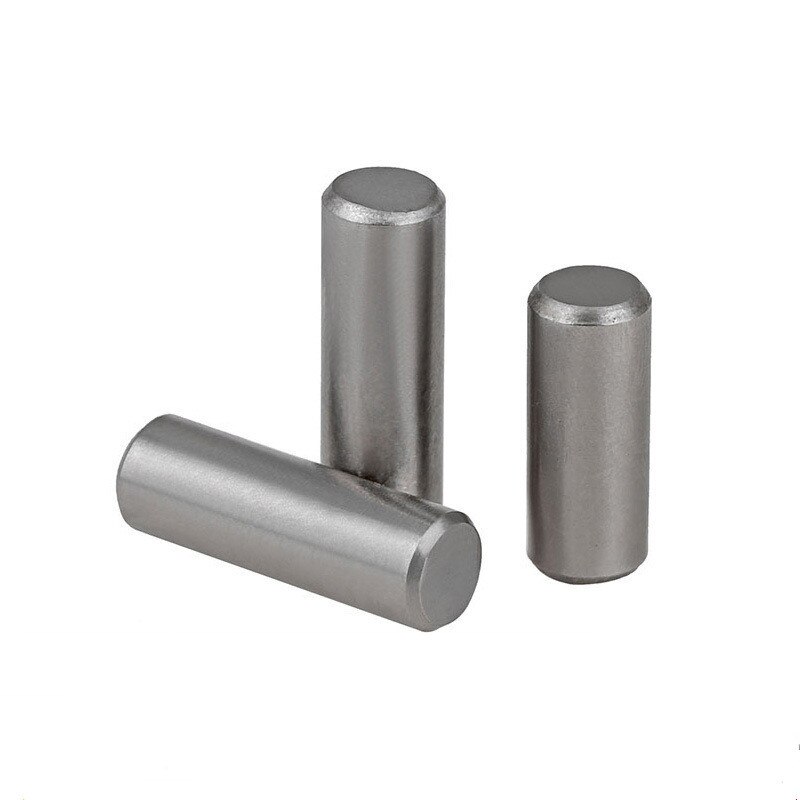

MS16562-143 is a pin in steel comp 1070 or steel comp 1078 or steel comp 1080 or steel comp 1084 or steel comp 1095, phosphate zinc finish and 0.194 INCHES MINIMUM AND 0.199 INCHES MAXIMUM diameter.
Pin
SPECIFICATIONS
KEY DIMENSIONS
DIAMETERMinimum 0.194 in; maximum 0.199 in
MATERIAL & FINISH
MATERIALSTEEL COMP 1070 OR STEEL COMP 1078 OR STEEL COMP 1080 OR STEEL COMP 1084 OR STEEL COMP 1095
FINISHPHOSPHATE ZINC
MECHANICAL
SHEAR STRENGTHDouble pound 4400
HARDNESSRockwell c minimum 46.0 and rockwell c maximum 53.0
FLIS · NSN 008465998 · retrieved 2026-09-16
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
MS16562-143
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
