EMANON PART NO.
MS20426AD4-7

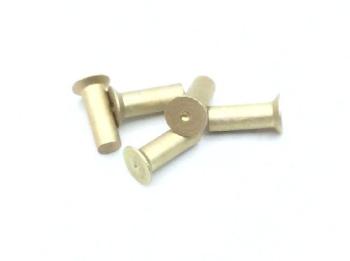

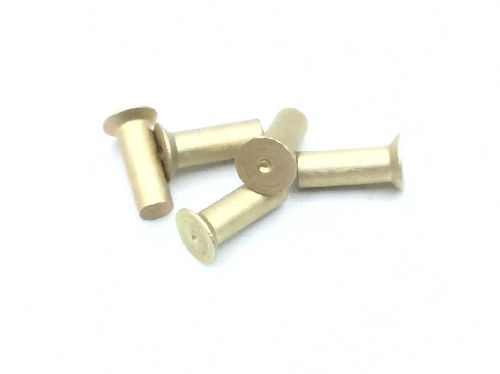

MS20426AD4-7 is a rivet in aluminum alloy 2117, anodize or oxide film finish, 1/8 diameter and Between 0.428 inches and 0.448 inches length.
Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.125 in (1/8)
LENGTHBetween 0.428 inches and 0.448 inches
GRIPBetween 0.240 inches and 0.260 inches
HEAD & SHANK
HEADFlush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
HEAD DIAMETER0.221–0.229 in
SHANK STYLED10 straight with radius chamfered tip
SHANK DIAMETER0.124–0.128 in
MATERIAL & FINISH
MATERIALAluminum alloy 2117
MATERIAL SPECQQ-A-430 — FED SPEC
FINISHAnodize or oxide film
FINISH SPECMIL-A-8625 or MIL-C-5541
MECHANICAL
SHEAR STRENGTH26,000 psi
STANDARDS & TRACEABILITY
NSN5320-00-117-6952
FLIS · NSN 5320-00-117-6952 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
length: 7/16, diameter: 1/8", countersunk precision head, aluminum alloy, roughly 1700 pieces per pound, MS20426 series rivet
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
