EMANON PART NO.
MS20426AD4-7-5

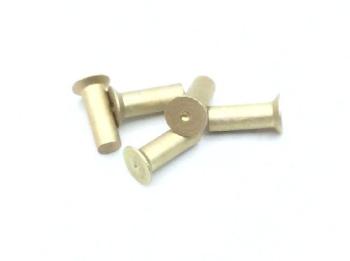

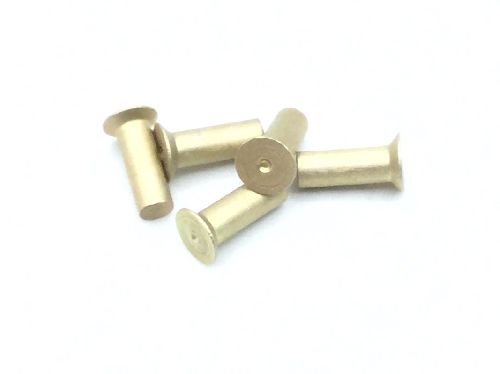

MS20426AD4-7-5 is a rivet in aluminum alloy 2117, anodize or chromate finish, 1/8 diameter and Between 0.459 inches and 0.479 inches length.
Rivet · listed as MS20426AD4-7.5
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.125 in (1/8)
LENGTHBetween 0.459 inches and 0.479 inches
HEAD & SHANK
HEADFlush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
HEAD DIAMETER0.229 in MAXIMUM
SHANK STYLED10 straight with radius chamfered tip
SHANK DIAMETER0.124–0.128 in
MATERIAL & FINISH
MATERIALAluminum alloy 2117
MATERIAL SPECQQ-A-430 — FED SPEC
FINISHAnodize or chromate
FINISH SPECMIL-A-8625 or MIL-C-5541
MECHANICAL
SHEAR STRENGTH26,000 psi
STANDARDS & TRACEABILITY
NSN5320-01-047-1062
FLIS · NSN 5320-01-047-1062 · retrieved 2026-08-09
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
length: 15/32", diameter: 1/8", countersunk precision head, aluminum alloy, roughly 1600 pieces per pound, MS20426 series rivet
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
