EMANON PART NO.
MS20470AD3-2

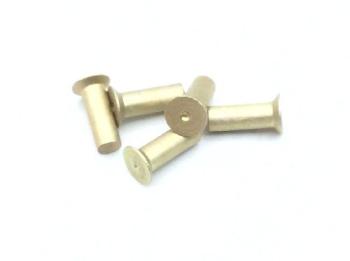

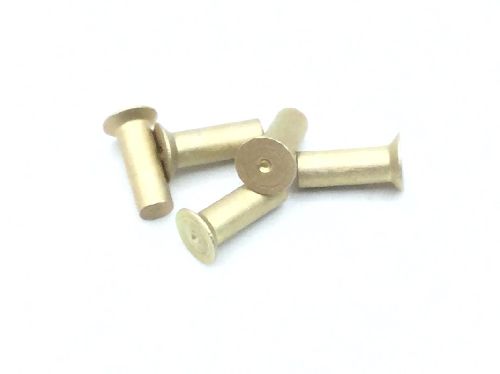

MS20470AD3-2 is a rivet in 2117-t4 aluminum alloy, anodize or oxide film finish, 3/32 diameter and 1/8 length.
Rivet · listed as MS20470AD3-2 CLAMP
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.094 in (3/32)
LENGTH0.125 in (1/8)
HEAD & SHANK
HEADUniversal head
HEAD DIAMETER0.178–0.196 in
HEAD HEIGHTMinimum 0.040 in; maximum 0.050 in
SHANK DIAMETER0.093–0.097 in
MATERIAL & FINISH
MATERIAL2117-T4 aluminum alloy
FINISHANODIZE OR OXIDE FILM
MECHANICAL
SHEAR STRENGTHSingle pounds per square inch 26000
STANDARDS & TRACEABILITY
NSN5320-00-165-8307
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
length: 1/8", diameter: 3/32", universal head, aluminum alloy, roughly 5610 pieces per pound, MS20470 series rivet
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
