EMANON PART NO.
MS20470AD3-3

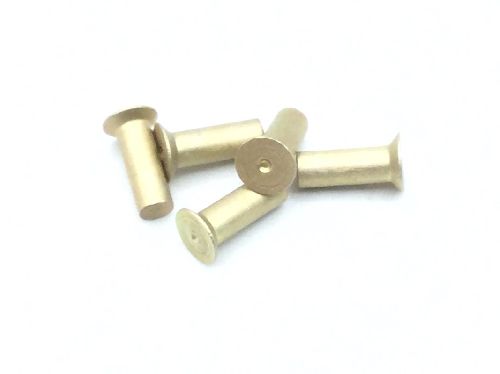

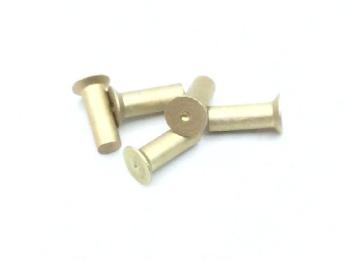

MS20470AD3-3 is a rivet in 2117-t4 aluminum alloy, oxide film or anodize finish, 3/32 in diameter and 3/16 in length.
Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER3/32 in
LENGTH3/16 in
GRIPMinimum 0.037 in; maximum 0.057 in
HEAD & SHANK
HEADUniversal head
HEAD DIAMETER0.178–0.196 in
HEAD HEIGHTMinimum 0.040 in; maximum 0.050 in
SHANK DIAMETER0.093–0.097 in
MATERIAL & FINISH
MATERIAL2117-T4 aluminum alloy
FINISHOXIDE FILM OR ANODIZE
MECHANICAL
SHEAR STRENGTHSingle pounds per square inch 26000
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
MS20470AD3-3
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
