EMANON PART NO.
MS20470AD4-9

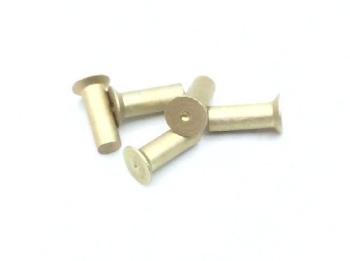

MS20470AD4-9 is a rivet in 2117-t4 aluminum alloy, anodize or chromate finish, 1/8 in diameter and 9/16 in length.
Rivet · listed as MS20470AD4-9 Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER1/8 in
LENGTH9/16 in
HEAD & SHANK
HEADUniversal head
HEAD DIAMETER0.238–0.262 in
HEAD HEIGHTMinimum 0.054 in; maximum 0.064 in
SHANK DIAMETER0.124–0.128 in
MATERIAL & FINISH
MATERIAL2117-T4 aluminum alloy
FINISHANODIZE OR CHROMATE
MECHANICAL
SHEAR STRENGTHSingle pounds per square inch 26000
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
