EMANON PART NO.
MS20470AD5-16

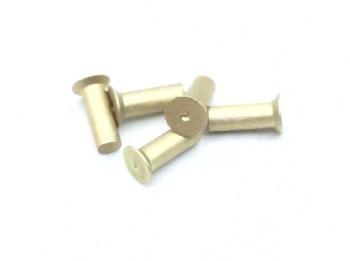

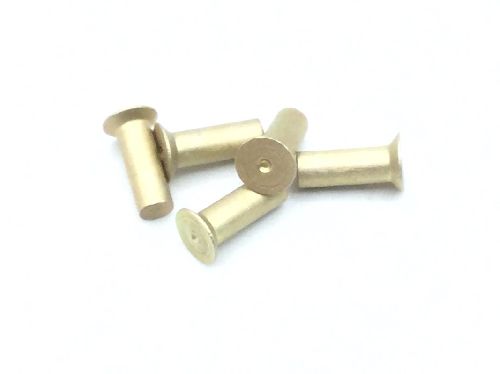

MS20470AD5-16 is a rivet in 2117-t4 aluminum alloy, oxide film or anodize finish, 5/32 in diameter and 1 in length.
Rivet · listed as MS20470AD5-16 Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER5/32 in
LENGTH1 in
GRIPMinimum 0.756 in; maximum 0.776 in
HEAD & SHANK
HEADUniversal head
HEAD DIAMETER0.296–0.328 in
HEAD HEIGHTMinimum 0.067 in; maximum 0.077 in
SHANK DIAMETER0.155–0.159 in
MATERIAL & FINISH
MATERIAL2117-T4 aluminum alloy
FINISHOXIDE FILM OR ANODIZE
MECHANICAL
SHEAR STRENGTHSingle pounds per square inch 26000
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
