EMANON PART NO.
MS20470AD5-6

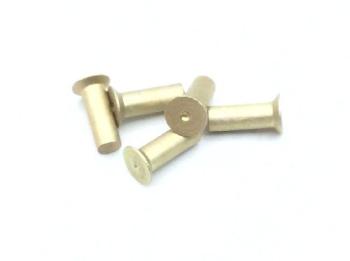

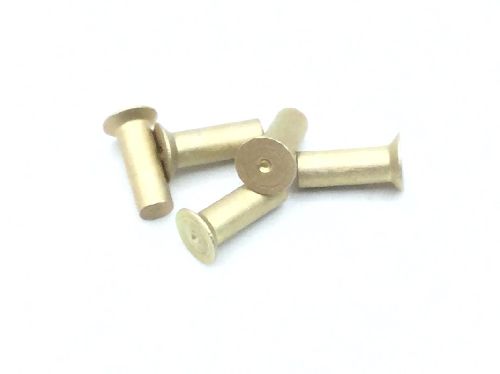

MS20470AD5-6 is a rivet in aluminum alloy 2117, anodize or chromate finish, 5/32 diameter and Between 0.365 inches and 0.385 inches length.
Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.156 in (5/32)
LENGTHBetween 0.365 inches and 0.385 inches
GRIPBetween 0.131 inches and 0.151 inches
HEAD & SHANK
HEADUniversal
HEAD DIAMETER0.296–0.328 in
HEAD HEIGHTMinimum 0.067 in; maximum 0.077 in
SHANK STYLED10 straight with radius chamfered tip
SHANK DIAMETER0.155–0.160 in
MATERIAL & FINISH
MATERIALAluminum alloy 2117
MATERIAL SPECQQ-A-430 — FED SPEC
FINISHAnodize or chromate
FINISH SPECMIL-A-8625 or MIL-C-5541
MECHANICAL
SHEAR STRENGTH26,000 psi
STANDARDS & TRACEABILITY
NSN5320-00-117-6839
FLIS · NSN 5320-00-117-6839 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
length: 3/8", diameter: 5/32", universal head, aluminum alloy, roughly 920 pieces per pound, MS20470 series rivet
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
