EMANON PART NO.
MS20605R3W5

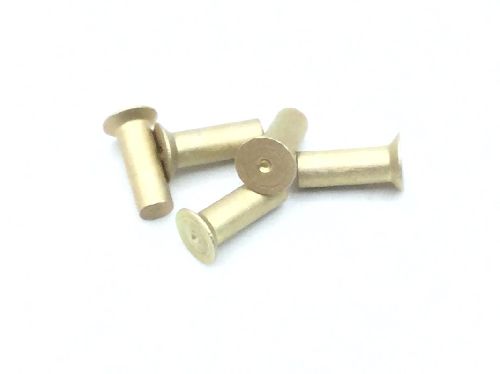

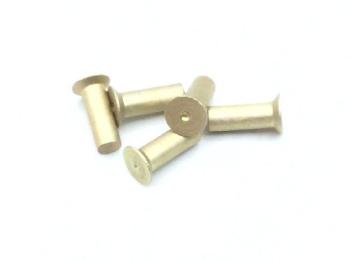

MS20605R3W5 is a rivet in steel comp 305 stem, passivate overall finish, 0.092 INCHES MINIMUM AND 0.097 INCHES MAXIMUM diameter and 11/16in length.
Rivet · listed as MS20605R3W5 Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETERMinimum 0.092 in; maximum 0.097 in
LENGTH11/16in
GRIPMinimum 0.251 in; maximum 0.312 in
HEAD & SHANK
HEAD DIAMETER0.183 in MAXIMUM
SHANK DIAMETER0.092–0.097 in
MATERIAL & FINISH
MATERIALSteel comp 305 stem
FINISHPassivate overall
STANDARDS & TRACEABILITY
NSN5320-01-287-0391
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
