EMANON PART NO.
MS20613-4C10
MS20613-4C10 is a rivet in steel comp 302, passivate finish, 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM diameter and 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM length.

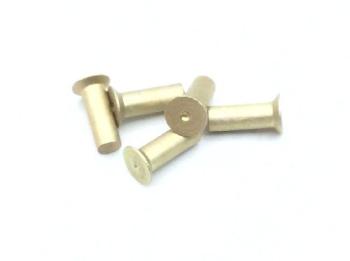

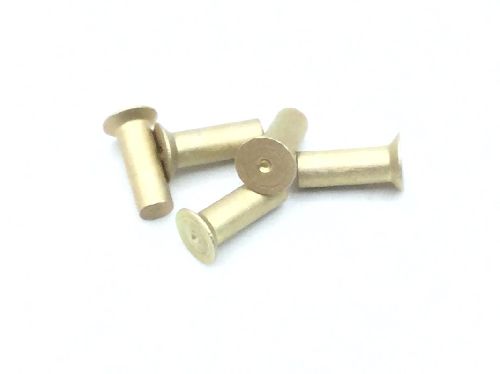

Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETERMinimum 0.124 in; maximum 0.128 in
LENGTHMinimum 0.615 in; maximum 0.635 in
GRIPMinimum 0.427 in; maximum 0.447 in
HEAD & SHANK
HEAD DIAMETER0.238–0.262 in
HEAD HEIGHTMinimum 0.054 in; maximum 0.064 in
SHANK DIAMETER0.124–0.128 in
MATERIAL & FINISH
MATERIALSTEEL COMP 302
FINISHPASSIVATE
MECHANICAL
SHEAR STRENGTHSingle pounds per square inch 65000
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
MS20613-4C10
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
