EMANON PART NO.
MS21250-07016
MS21250-07016 is a bolt in steel comp 8740 overall, cadmium overall and chromate overall finish, 0.438 INCHES diameter and 1-3/4 length.
Bolt · listed as MS21250-07016 Bolt

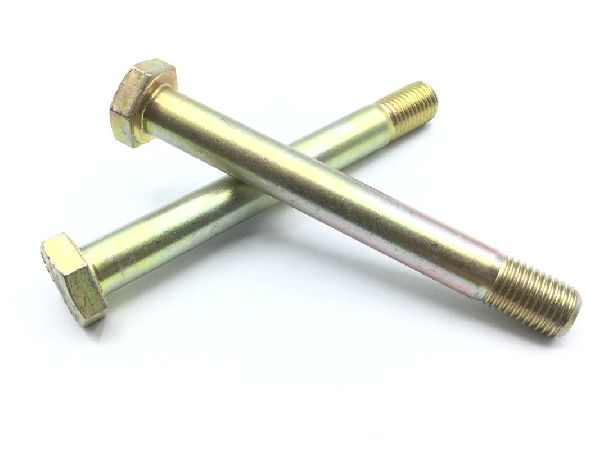

REFERENCE IMAGEReference image — representative of the type, not the exact part; verify dimensions per specification.
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.438 in
LENGTH1.750 in (1-3/4)
THREAD LENGTHMinimum 0.721 in; maximum 0.761 in
GRIPMinimum 0.990 in; maximum 1.010 in
GRIP DIAMETER0.4360–0.4370 in
THREAD
THREAD7/16-20
HEAD & DRIVE
HEADDouble hexagon extended washer
HEAD HEIGHTMinimum 0.425 in; maximum 0.445 in
WIDTH ACROSS FLATS0.492–0.502 in
MATERIAL & FINISH
MATERIALSteel comp 8740 overall
MATERIAL SPECMIL-S-6049 — MIL SPEC
FINISHCadmium overall and chromate overall
FINISH SPECQQ-P-416 TY 2 CL 3 ALL TREATMENT RESPONSES
MECHANICAL
TENSILE STRENGTH180,000 psi
STANDARDS & TRACEABILITY
NSN5306-00-901-4299
GOVERNING STANDARDMS21250-07016
FLIS · NSN 5306-00-901-4299 · retrieved 2026-08-07
DOCUMENTS
✓Certificate of Conformance — included with every order
No drawing on file — request it
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
