EMANON PART NO.
MS24665-1013

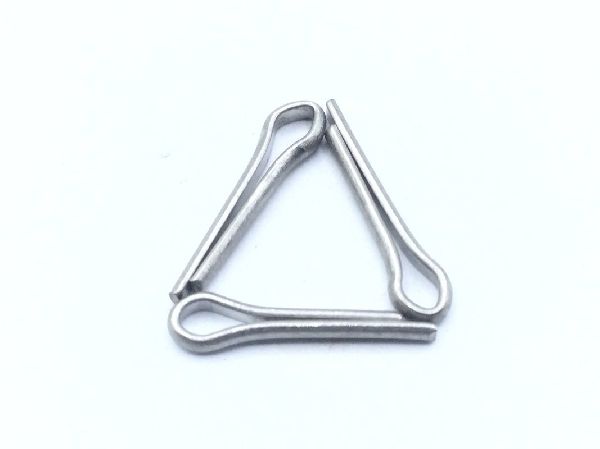

MS24665-1013 is a pin in steel comp 302 overall or steel comp 304 overall, passivate overall finish, 0.062 inches nominal diameter and 7/16 length.
Pin
SPECIFICATIONS
KEY DIMENSIONS
DIAMETERNominal 0.062 in
LENGTH0.438 in (7/16)
STYLE
STYLEA1 standard
POINT TYPEExtended prong square cut
MATERIAL & FINISH
MATERIALSteel comp 302 overall or steel comp 304 overall
MATERIAL SPEC66 — FED STD
FINISHPassivate overall
FINISH SPECQQ-P-35
MECHANICAL
HARDNESS65.0 rockwell superficial 15-N minimum and 78.0 rockwell superficial 15-N maximum
STANDARDS & TRACEABILITY
NSN5315-01-025-4510
FLIS · NSN 5315-01-025-4510 · retrieved 2026-08-09
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
length: 7/16", diameter: 1/16", corrosion resistant steel, MS24665 series pin
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
