EMANON PART NO.
MS24665-380

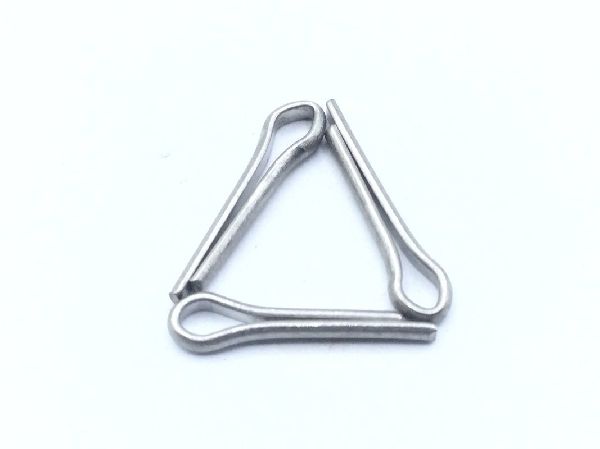

MS24665-380 is a pin in steel comp 302 or steel comp 304, passivate finish, 0.116 INCHES MINIMUM AND 0.120 INCHES MAXIMUM diameter and 2.875 INCHES MINIMUM AND 3.125 INCHES MAXIMUM length.
Pin · listed as MS24665-380 Pin
SPECIFICATIONS
KEY DIMENSIONS
DIAMETERMinimum 0.116 in; maximum 0.120 in
LENGTHMinimum 2.875 in; maximum 3.125 in
STYLE
POINT TYPEExtended prong square cut
MATERIAL & FINISH
MATERIALSTEEL COMP 302 OR STEEL COMP 304
FINISHPASSIVATE
MECHANICAL
HARDNESSRockwell superficial 15-N minimum 55.0 and rockwell superficial 15-N maximum 67.0
FLIS · NSN 002368365 · retrieved 2026-09-16
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
