EMANON PART NO.
MS35206-218

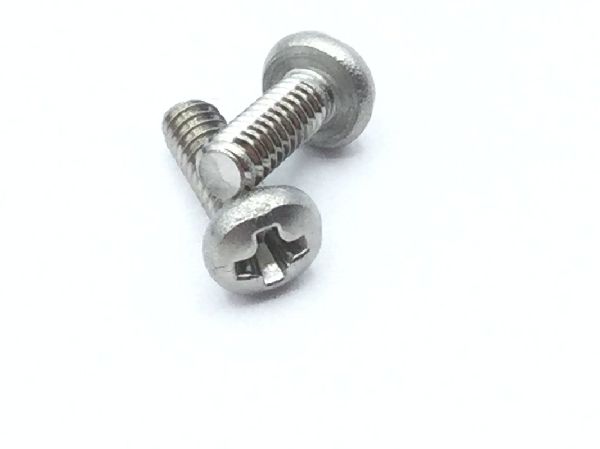

MS35206-218 is a screw in copper alloy 268 and copper alloy 360, cadmium and chromate finish, 0.112 INCHES diameter and 0.625 INCHES NOMINAL length.
Screw · listed as MS35206-218 Screw
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.112 in
LENGTHNominal 0.625 in
THREAD LENGTHMinimum 0.575 in; maximum 0.625 in
THREAD
THREAD0.112-40 unified national coarse (UNC)-2A right-hand
HEAD & DRIVE
HEAD HEIGHTMinimum 0.070 in; maximum 0.080 in
HEAD DIAMETER0.205–0.219 in
MATERIAL & FINISH
MATERIALCOPPER ALLOY 268 AND COPPER ALLOY 360
FINISHCADMIUM AND CHROMATE
MECHANICAL
TENSILE STRENGTH55,000 psi
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
