EMANON PART NO.
MS35307-359
MS35307-359 is a screw in steel, passivate finish, 0.375 INCHES diameter and 0.875 inches length.
Screw
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.375 in
LENGTH0.875 in
THREAD LENGTHMaximum 0.875 in
THREAD
THREAD0.375-16 UNC-2A right-hand
HEAD & DRIVE
HEADHexagon
HEAD HEIGHTMinimum 0.226 in; maximum 0.243 in
WIDTH ACROSS FLATS0.551–0.562 in
MATERIAL & FINISH
MATERIALSteel
MATERIAL SPEC66 — FED STD
FINISHPassivate
FINISH SPECQQ-P-35
MECHANICAL
TENSILE STRENGTH80,000 psi
STANDARDS & TRACEABILITY
NSN5305-00-717-5460
FLIS · NSN 5305-00-717-5460 · retrieved 2026-08-07
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it

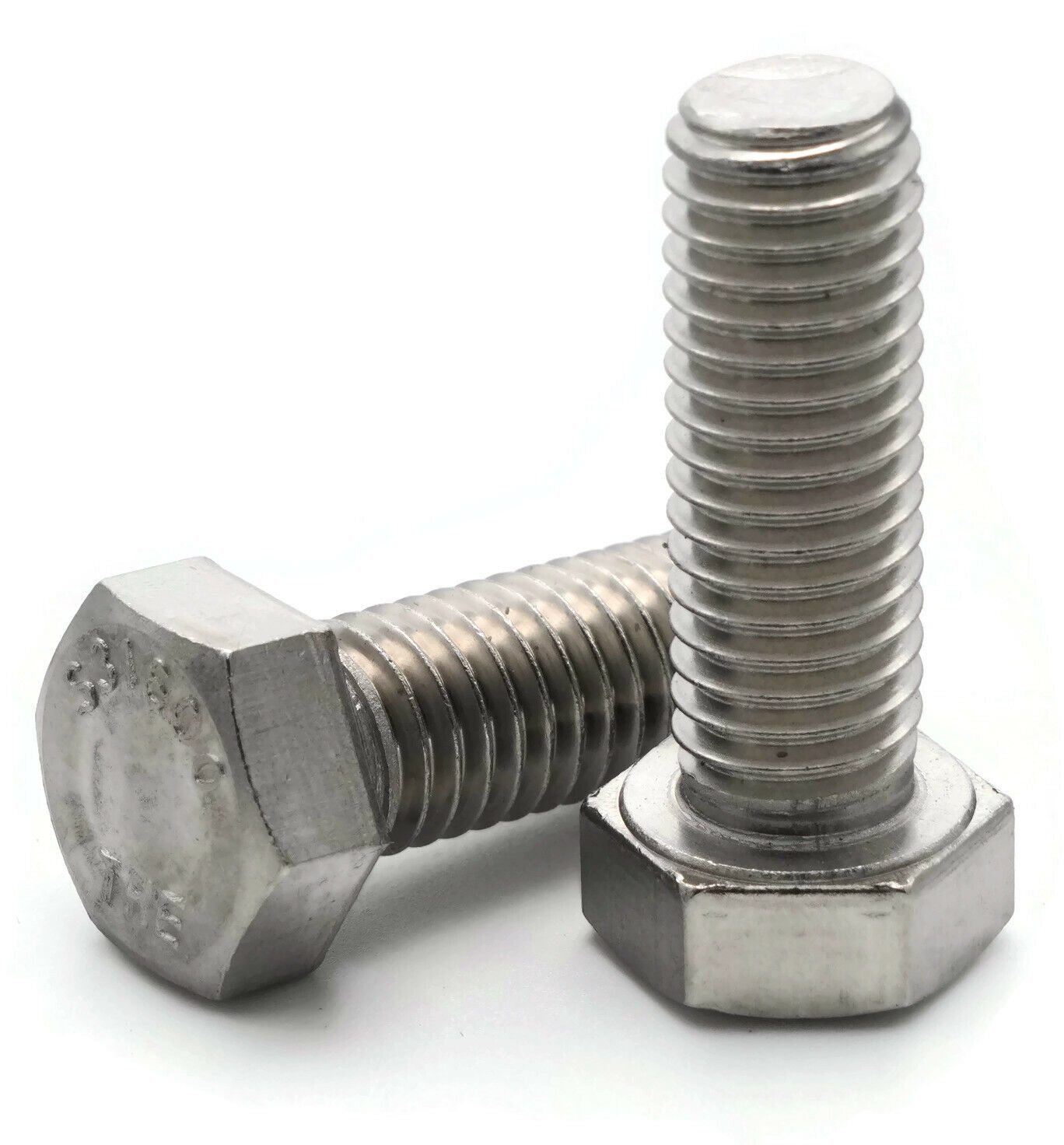

MS35307-359 Hexagon Head Cap Screw
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
