EMANON PART NO.
MS35307-413

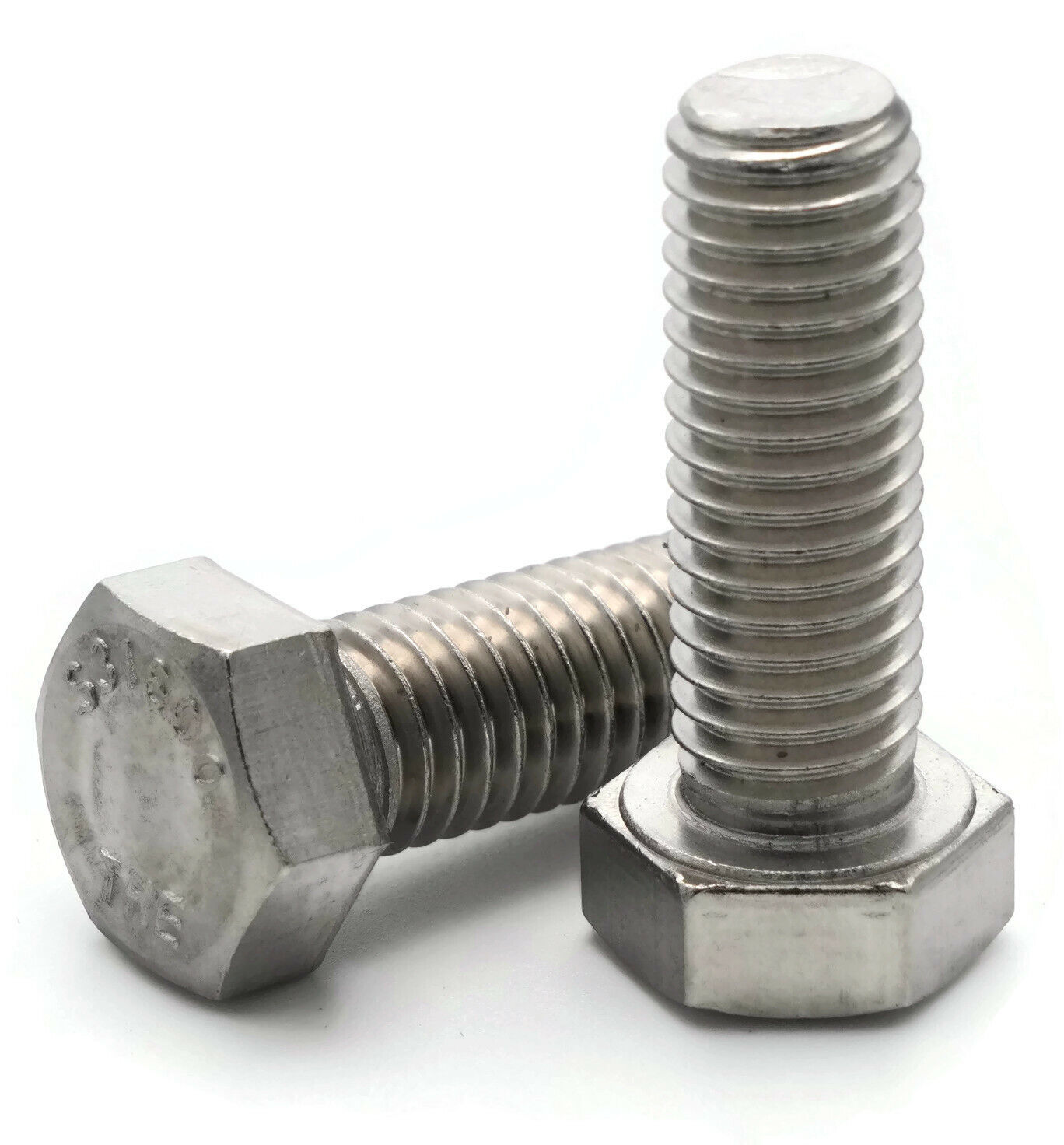

MS35307-413 is a screw in steel, passivate finish, 0.500 INCHES diameter and 1-1/2 length.
Screw
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.500 in
LENGTH1.500 in (1-1/2)
THREAD LENGTHMaximum 1.500 in
THREAD
THREAD1/2-13
HEAD & DRIVE
HEADHexagon
HEAD HEIGHTMinimum 0.302 in; maximum 0.323 in
WIDTH ACROSS FLATS0.736–0.750 in
MATERIAL & FINISH
MATERIALSteel
FINISHPassivate
MECHANICAL
TENSILE STRENGTH80,000 psi
STANDARDS & TRACEABILITY
NSN5305-00-021-3806
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Fastener Length: 1-1/2", Thread: 1/2-13, Thread Length: 1-1/2
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
