EMANON PART NO.
MS35308-360
MS35308-360 is a screw in steel comp 302 overall or steel comp 303 overall or steel comp 304 overall or steel comp 305 overall or steel comp 316 overall, passivate overall finish, 0.375 INCHES diameter and 1.000 inches nominal length.
Screw
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.375 in
LENGTHNominal 1.000 in
THREAD LENGTHMaximum 1.000 in
THREAD
THREAD0.375-24 UNF-2A right-hand
HEAD & DRIVE
HEADHexagon
HEAD HEIGHTMinimum 0.226 in; maximum 0.243 in
WIDTH ACROSS FLATS0.551–0.562 in
MATERIAL & FINISH
MATERIALSteel comp 302 overall or steel comp 303 overall or steel comp 304 overall or steel comp 305 overall or steel comp 316 overall
MATERIAL SPECSPECIFICATIONS BEING VERIFIED
FINISHPassivate overall
FINISH SPECQQ-P-35
MECHANICAL
TENSILE STRENGTH80,000 psi
STANDARDS & TRACEABILITY
NSN5305-00-680-4262
FLIS · NSN 5305-00-680-4262 · retrieved 2026-08-09
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it

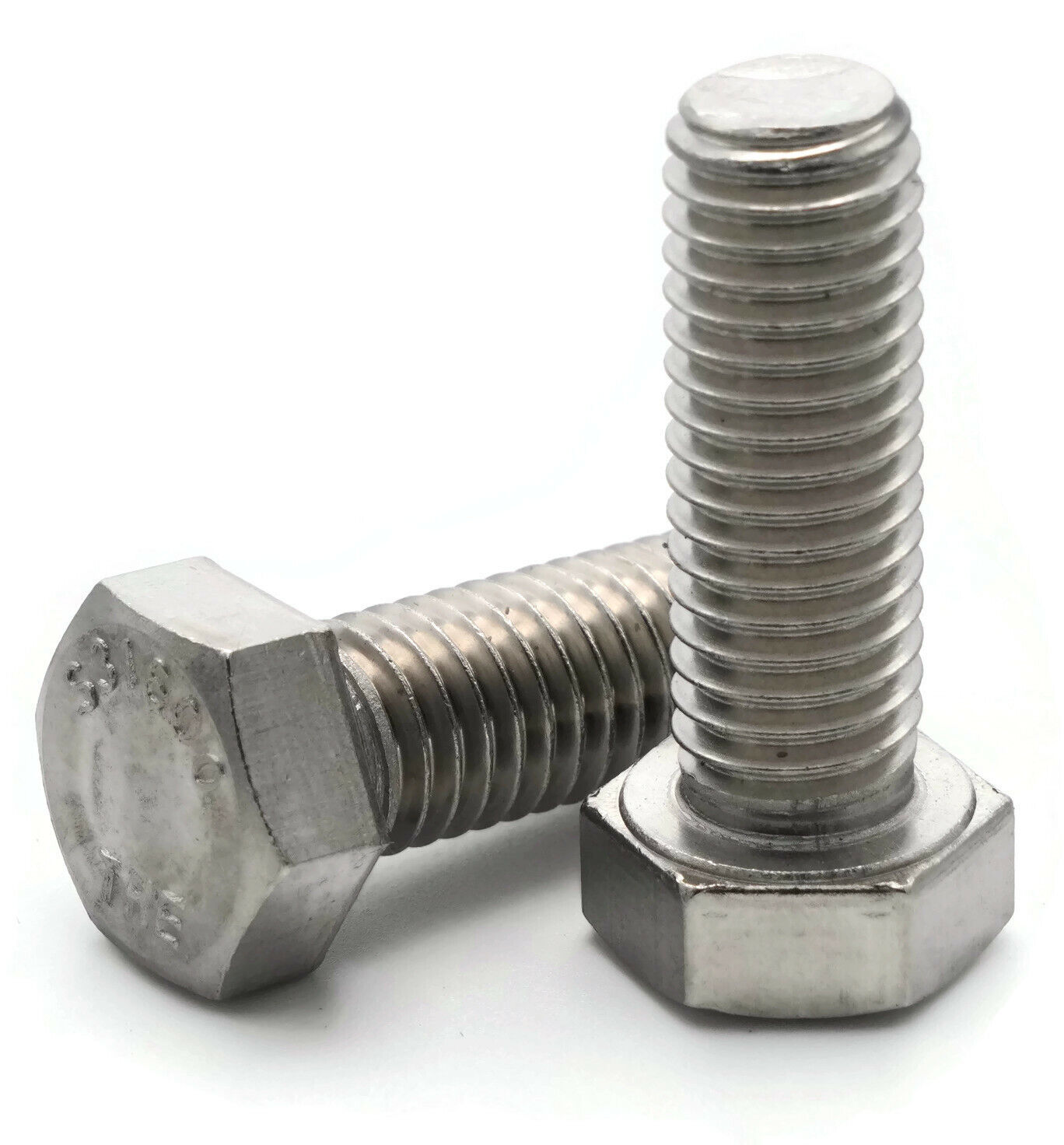

MS35308-360 Hexagon Head Cap Screw
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
