EMANON PART NO.
MS35489-17

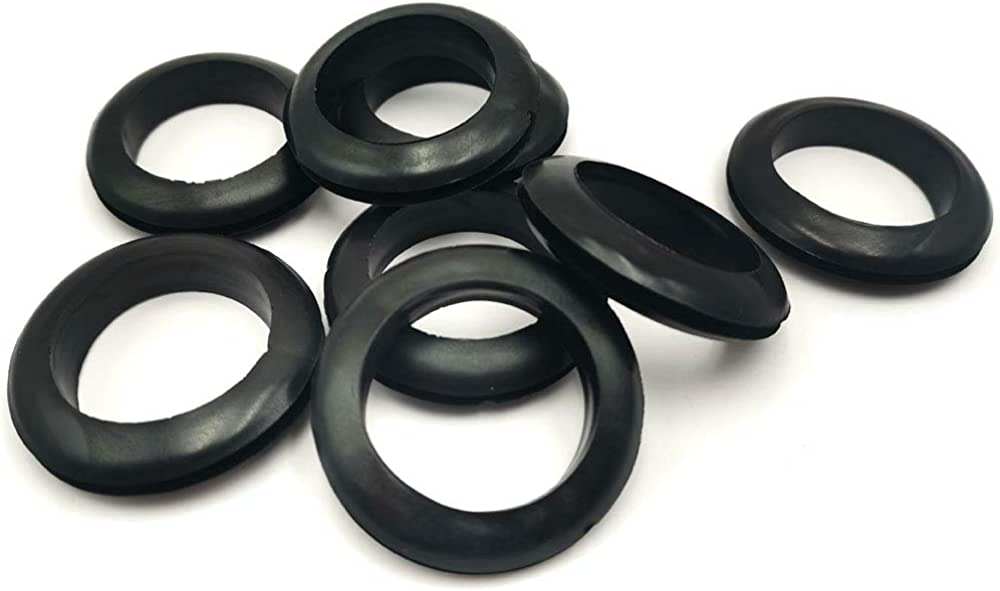

MS35489-17 is a grommet in rubber synthetic overall.
Grommet
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.625 in (5/8)
MATERIAL & FINISH
MATERIALRubber synthetic overall
MATERIAL SPECASTM D2000,BG515A14B24C32E036F19Z — ASSN STD
STANDARDS & TRACEABILITY
NSN5325-01-242-7083
GOVERNING STANDARDMS35489-17
FLIS · NSN 5325-01-242-7083 · retrieved 2026-08-10
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Inner diameter: 5/8", groove diameter: 7/8", groove width: 1/16", synthetic rubber, hot oil and coolant resistant, MS35489 series grommet
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
