EMANON PART NO.
MS51959-1
MS51959-1 is a screw in steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316, passivate finish, 0.086 INCHES diameter and 0.094 inches minimum and 0.125 inches maximum length.
Screw
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.086 in
LENGTHMinimum 0.094 in; maximum 0.125 in
THREAD LENGTHMinimum 0.089 in; maximum 0.125 in
THREAD
THREAD0.086-56 UNC-2A right-hand
HEAD & DRIVE
HEADFlat countersunk undercut
HEAD HEIGHTMinimum 0.028 in; maximum 0.036 in
HEAD DIAMETER0.147–0.172 in
MATERIAL & FINISH
MATERIALSTEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316
FINISHPASSIVATE
MECHANICAL
TENSILE STRENGTH80,000 psi
STANDARDS & TRACEABILITY
NSN5305-00-766-2422
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it

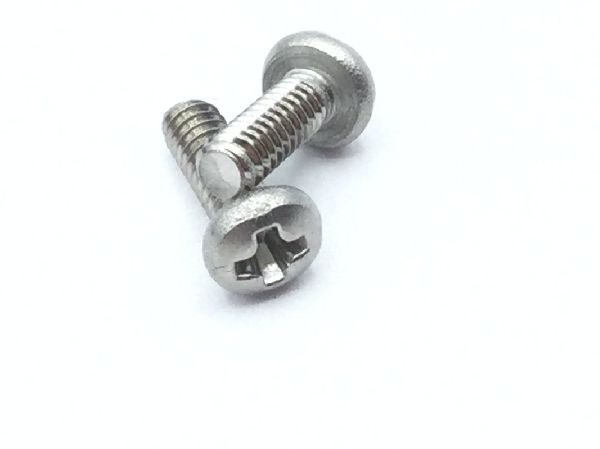

MS51959-1 Machine Screw
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
