EMANON PART NO.
NAS1097AD3-5
Fastener

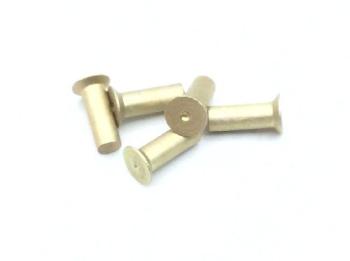

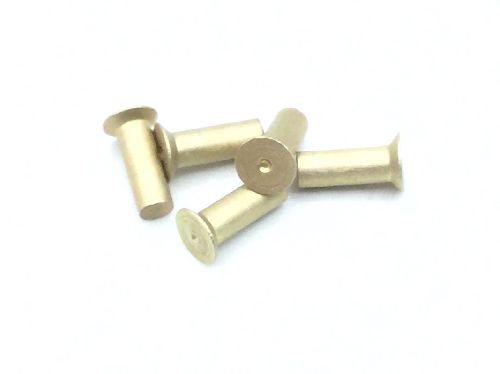

REFERENCE IMAGEReference image — representative of the type, not the exact part; verify dimensions per specification.
SPECIFICATIONS
KEY DIMENSIONS
LENGTHMinimum 0.302 in; maximum 0.322 in
MATERIAL & FINISH
MATERIALOVERALL ALUMINUM ALLOY 2117
FINISHOVERALL ANODIZE OR OXIDE FILM
DOCUMENTS
✓Certificate of Conformance — included with every order
No drawing on file — request it
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
