EMANON PART NO.
NAS1102E4-16

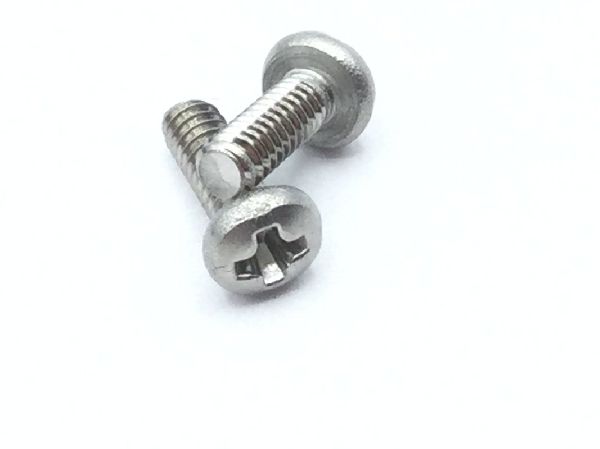

NAS1102E4-16 is a screw in iron alloy 660, passivate finish, 0.250 INCHES diameter and 0-63/64 length.
Screw
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.250 in
LENGTH0.984 in (0-63/64)
THREAD LENGTHMinimum 0.792 in; maximum 0.894 in
THREAD
THREAD1/4-28
HEAD & DRIVE
HEADFlat countersunk
HEAD DIAMETER0.442–0.507 in
MATERIAL & FINISH
MATERIALIRON ALLOY 660
FINISHPASSIVATE
MECHANICAL
TENSILE STRENGTH160,000 psi
STANDARDS & TRACEABILITY
NSN5305-01-010-3680
GOVERNING STANDARD80205-NAS1102
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Fastener Length: 0-63/64", Thread: 1/4-28, Thread Length: 57/64", NAS1102 series screw
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
