EMANON PART NO.
NAS1149C1732R
NAS1149C1732R is a washer in steel comp 302 and passivate finish.
Washer
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER1.078 in
OUTSIDE DIAMETER1.812 in nom
THICKNESS0.032 in
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALSteel comp 302
MATERIAL SPECAMS 5516 — ASSN STD
FINISHPassivate
FINISH SPECAMS 2700, METHOD 1, TYPE 6 or TYPE 7, CLASS 1
STANDARDS & TRACEABILITY
NSN5310-01-537-3784
FLIS · NSN 5310-01-537-3784 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it

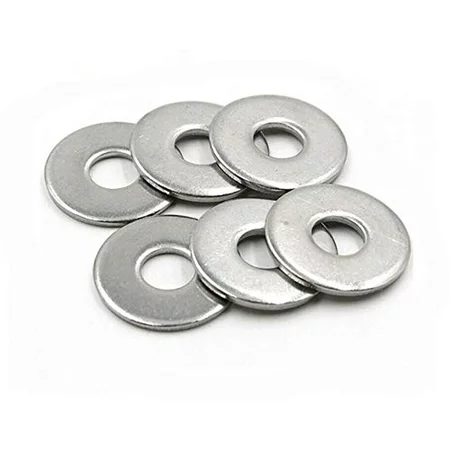

NAS1149C1732R Flat Washer
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
