EMANON PART NO.
NAS1149C2132R

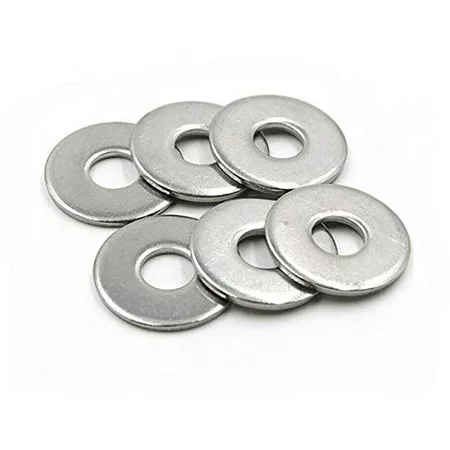

NAS1149C2132R is a washer in steel, passivate finish and 2-5/64 diameter.
Washer
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER1.328 in (1-21/64)
OUTSIDE DIAMETER2.057–2.082 in
THICKNESS0.031 in (1/32)
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALSteel
MATERIAL SPECMIL-S-5059 — MIL SPEC · MIL-S-5059 — MIL SPEC · MIL-S-5059 — MIL SPEC · MIL-S-5059 — MIL SPEC · AMS 5510 — ASSN STD · AMS 5512 — ASSN STD
FINISHPassivate
FINISH SPECQQ-P-35
STANDARDS & TRACEABILITY
NSN5310-01-445-5865
FLIS · NSN 5310-01-445-5865 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Hole Diameter: 1-21/64", Diameter: 2-5/64", Thickness: 1/32
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
