EMANON PART NO.
NAS1149D0316H

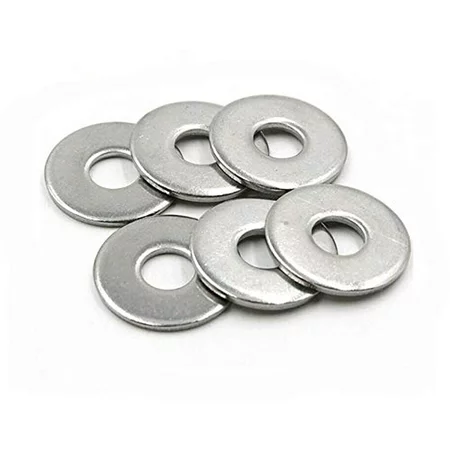

NAS1149D0316H is a washer in aluminum alloy 2024.
Washer
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.203 in
OUTSIDE DIAMETER0.433–0.458 in
THICKNESS0.016 in
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALAluminum alloy 2024
MATERIAL SPECQQ-A-250/5 — FED SPEC
STANDARDS & TRACEABILITY
NSN5310-00-167-0752
ALTERNATE PART NUMBERSAN960D10L
FLIS · NSN 5310-01-400-3787 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
size: #10, thickness: 1/64, aluminum alloy, NAS1149 series washer
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
