EMANON PART NO.
NAS1149DN516J

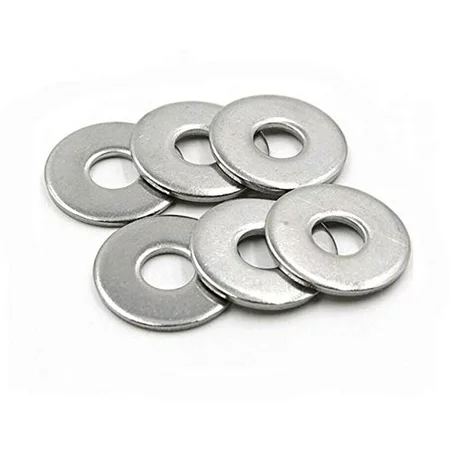

NAS1149DN516J is a washer in aluminum alloy 2024 overall and 37/64 diameter.
Washer
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.328 in (21/64)
OUTSIDE DIAMETER0.557–0.582 in
THICKNESS0.016 in (1/64)
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALAluminum alloy 2024 overall
MATERIAL SPECQQ-A-250/5 — FED SPEC
FINISH SPECMIL-C-5541 CLASS 3
STANDARDS & TRACEABILITY
NSN5310-01-540-0715
FLIS · NSN 5310-01-540-0715 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Hole Diameter: 21/64", Diameter: 37/64", Thickness: 1/64
