EMANON PART NO.
NAS1149FN616P

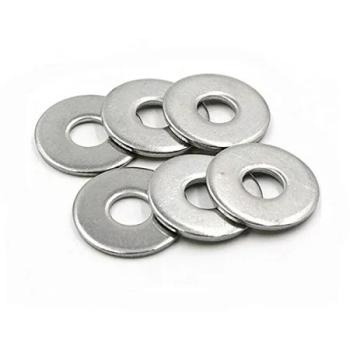

NAS1149FN616P is a washer in steel comp 1020 or steel comp 1025 and cadmium and chromate finish.
Washer
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.139–0.159 in
OUTSIDE DIAMETER0.370–0.395 in
THICKNESS0.016
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALSteel comp 1020 or steel comp 1025
FINISHCadmium and chromate
FINISH SPECQQ-P-416, TY2, CL2
STANDARDS & TRACEABILITY
NSN5310-01-382-4543
GOVERNING STANDARD80205-NAS1149
ALTERNATE PART NUMBERSAN960-6L
FLIS · NSN 5310-01-382-4543 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
size: #6, thickness 1/64", carbon steel, cadmium plated finish, NAS1149 series washer
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
