EMANON PART NO.
NAS501-3-21A

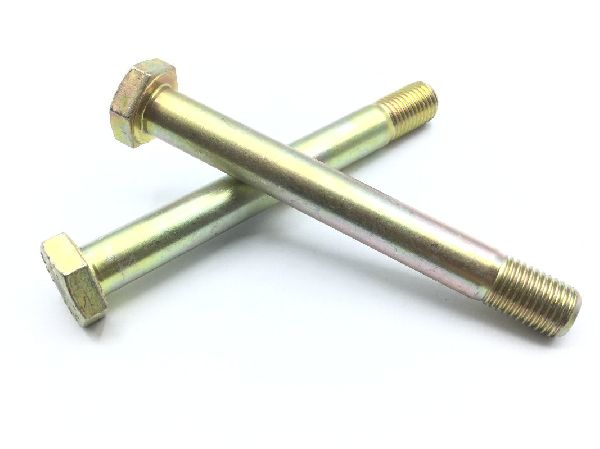

NAS501-3-21A is a bolt in steel comp 321 or steel comp 347, passivate finish, 0.190 INCHES diameter and 2.140 INCHES MINIMUM AND 2.187 INCHES MAXIMUM length.
Bolt
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.190 in
LENGTHMinimum 2.140 in; maximum 2.187 in
THREAD LENGTHMinimum 0.390 in; maximum 0.437 in
GRIPNominal 1.750 in
THREAD
THREAD0.190-32 UNF-3A right-hand
HEAD & DRIVE
HEAD HEIGHTNominal 0.125 in
WIDTH ACROSS FLATS0.365–0.377 in
MATERIAL & FINISH
MATERIALSTEEL COMP 321 OR STEEL COMP 347
FINISHPASSIVATE
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
