EMANON PART NO.
NAS501-3H6A

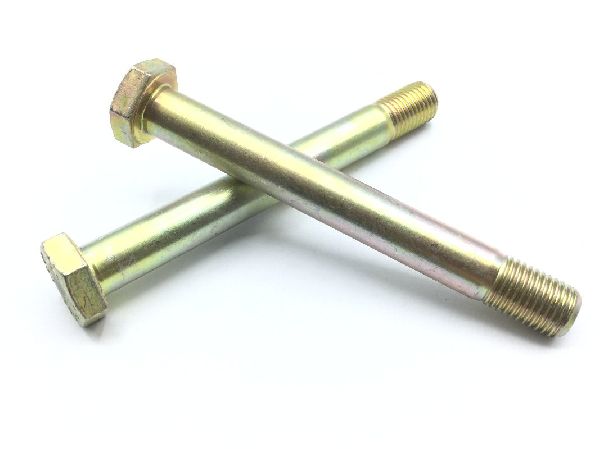

NAS501-3H6A is a bolt in 0.190 INCHES diameter and 0.765 INCHES MINIMUM AND 0.812 INCHES MAXIMUM length.
Bolt
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.190 in
LENGTHMinimum 0.765 in; maximum 0.812 in
THREAD LENGTHMinimum 0.374 in; maximum 0.453 in
GRIPMinimum 0.359 in; maximum 0.391 in
THREAD
THREAD0.190-32 UNF-3A right-hand
HEAD & DRIVE
HEAD HEIGHTMinimum 0.109 in; maximum 0.141 in
WIDTH ACROSS FLATS0.365–0.377 in
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
NAS501-3H6A
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
