EMANON PART NO.
NAS501-5-15A

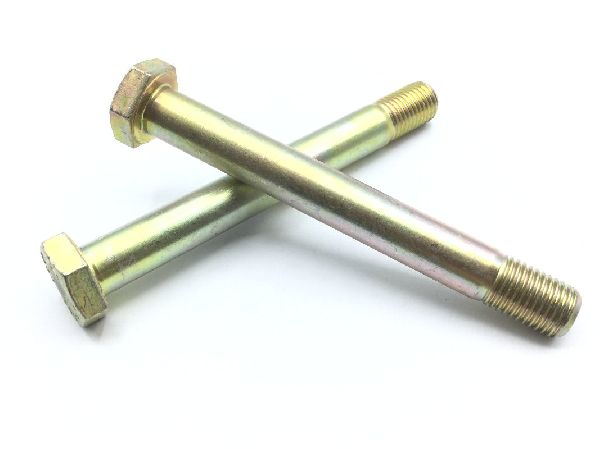

NAS501-5-15A is a bolt in steel comp 302, 0.312 INCHES diameter and 1.719 INCHES NOMINAL length.
Bolt
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.312 in
LENGTHNominal 1.719 in
THREAD LENGTHMinimum 0.531 in
GRIPNominal 1.188 in
THREAD
THREAD0.312-24 UNF-3A right-hand
HEAD & DRIVE
HEAD HEIGHTNominal 0.188 in
WIDTH ACROSS FLATS0.490–0.502 in
MATERIAL & FINISH
MATERIALSTEEL COMP 302
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
