EMANON PART NO.
NAS501-5-16A

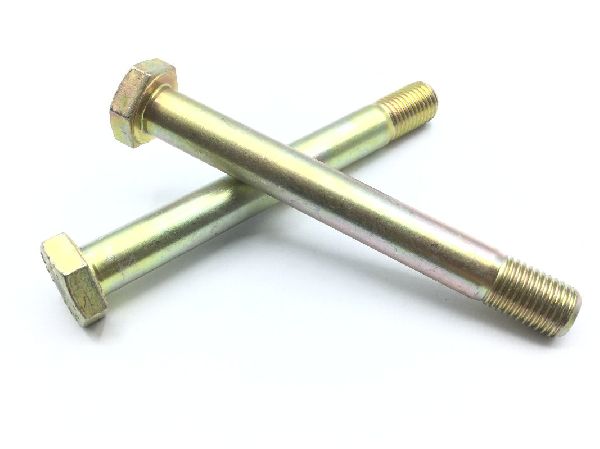

NAS501-5-16A is a bolt in steel corrosion resisting, passivate finish, 0.312 INCHES diameter and 1.844 INCHES NOMINAL length.
Bolt
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.312 in
LENGTHNominal 1.844 in
THREAD LENGTHMinimum 0.532 in
GRIPNominal 1.312 in
THREAD
THREAD0.312-24 UNF-3A right-hand
HEAD & DRIVE
HEAD HEIGHTNominal 0.188 in
WIDTH ACROSS FLATS0.500 in nom
MATERIAL & FINISH
MATERIALSTEEL CORROSION RESISTING
FINISHPASSIVATE
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
