EMANON PART NO.
NAS513-8
NAS513-8 is a washer in steel comp 1095 overall and cadmium overall and chromate overall finish.

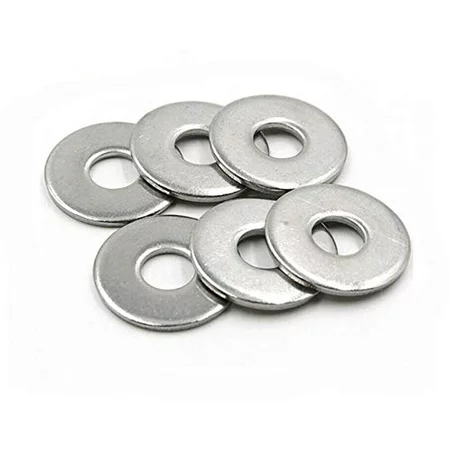

Washer
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.512–0.528 in
OUTSIDE DIAMETER0.750–0.770 in
MATERIAL & FINISH
MATERIALSteel comp 1095 overall
MATERIAL SPECMIL-S-7947,COND A — MIL SPEC
FINISHCadmium overall and chromate overall
FINISH SPECQQ-P-416,TY 2,CL 2
MECHANICAL
HARDNESS40–45 HRC
STANDARDS & TRACEABILITY
NSN5310-00-543-2426
GOVERNING STANDARD80205-NAS513
FLIS · NSN 5310-00-543-2426 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
NAS513-8 Key Washer
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
