EMANON PART NO.
NAS6704U19
NAS6704U19 is a bolt in iron alloy 660, passivate finish, 0.250 INCHES diameter and 1-5/8 length.

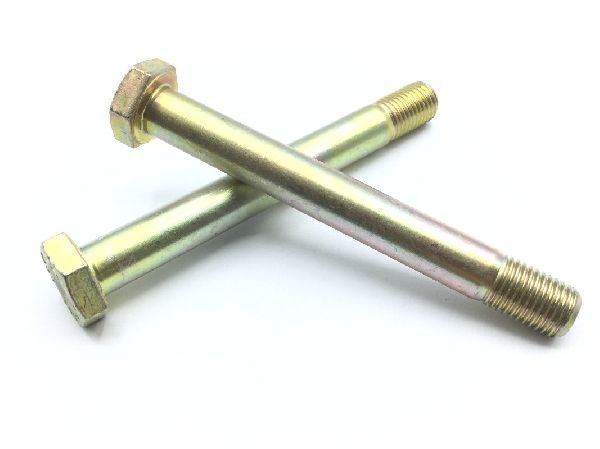

Bolt
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.250 in
LENGTH1.625 in (1-5/8)
THREAD LENGTHMinimum 0.400 in; maximum 0.450 in
GRIPBetween 1.178 inches and 1.198 inches
GRIP DIAMETER0.2490–0.2495 in
THREAD
THREAD1/4-28
HEAD & DRIVE
HEADDished hexagon
HEAD HEIGHTMinimum 0.125 in; maximum 0.140 in
WIDTH ACROSS FLATS0.430–0.439 in
MATERIAL & FINISH
MATERIALIron alloy 660
MATERIAL SPECAMS5731 — ASSN STD
FINISHPassivate
MECHANICAL
TENSILE STRENGTH160,000 psi
STANDARDS & TRACEABILITY
NSN5306-01-008-6716
GOVERNING STANDARD80205-NAS6704
FLIS · NSN 5306-01-008-6716 · retrieved 2026-08-07
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Fastener Length: 1-5/8", Thread: 1/4-28, Thread Length: 7/16
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
