EMANON PART NO.
MS20220-2
Pulley

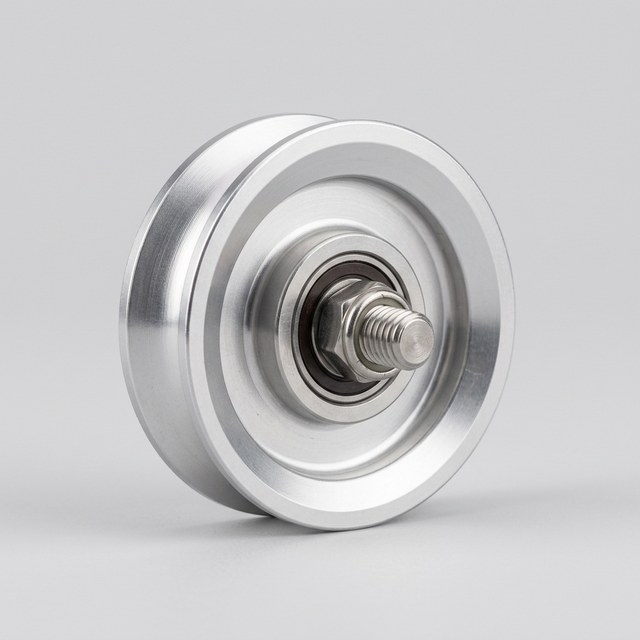

REFERENCE IMAGEReference image — representative of the type, not the exact part; verify dimensions per specification.
SPECIFICATIONS
KEY DIMENSIONS
OUTSIDE DIAMETER3.005 in
STANDARDS & TRACEABILITY
NSN3020-00-277-1123
DOCUMENTS
✓Certificate of Conformance — included with every order
No drawing on file — request it
Use with cable size: 1/8" and 5/32" and 3/16", bore diameter: 5/16", groove diameter: 2-1/2", lubricated, flight control, nonmetallic sleeve, MS20220 series pulley
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
