EMANON PART NO.
NAS1395C3
NAS1395C3 is a insert in steel comp 303 overall, passivate overall finish, 3/16 inch insert diameter and 0.310 inches nominal length.
Insert

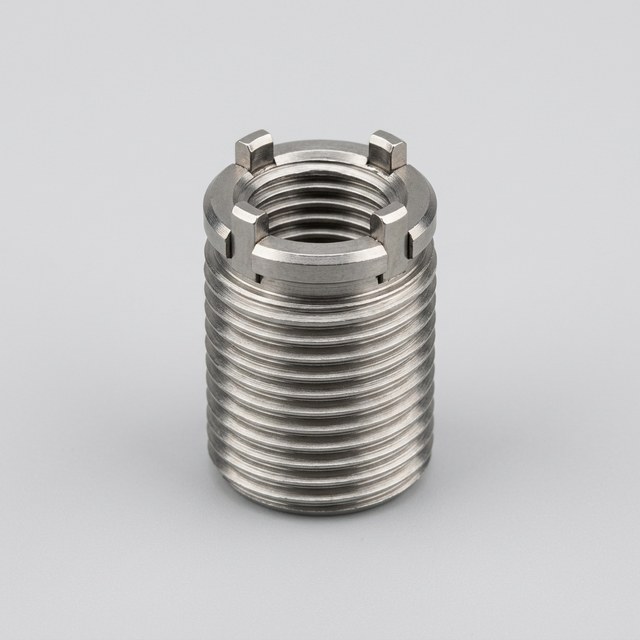

REFERENCE IMAGEReference image — representative of the type, not the exact part; verify dimensions per specification.
SPECIFICATIONS
KEY DIMENSIONS
LENGTH0.310 in nom
THREAD
THREAD3/16 inch insert
MATERIAL & FINISH
MATERIALSteel 303
FINISHPassivate
STANDARDS & TRACEABILITY
NSN5325-00-881-0707
ALTERNATE PART NUMBERSMS51831-201
DOCUMENTS
✓Certificate of Conformance — included with every order
No drawing on file — request it
without internal thread lock thread: 10-32 inner 3/8-16 outer wire rope swaging sleeve
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
