EMANON PART NO.
MS20426AD3-2

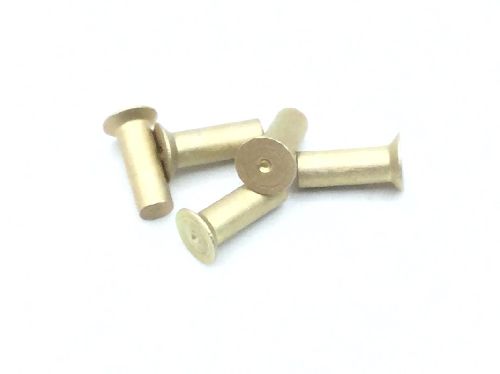

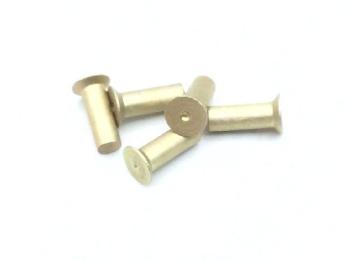

MS20426AD3-2 is a rivet in aluminum alloy 2117 overall, anodize overall or chromate overall finish, 3/32 diameter and 0.115 inches minimum and 0.135 inches maximum length.
Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.094 in (3/32)
LENGTHMinimum 0.115 in; maximum 0.135 in
HEAD & SHANK
HEADFlush (flat) countersunk (included angle - less than 135 deg w or w/o chamfer)
HEAD DIAMETER0.183 in MAXIMUM
SHANK STYLED10 straight with radius chamfered tip
SHANK DIAMETER0.093–0.097 in
MATERIAL & FINISH
MATERIALAluminum alloy 2117 overall
MATERIAL SPECQQ-A-430 — FED SPEC
FINISHAnodize overall or chromate overall
FINISH SPECMIL-A-8625 or MIL-C-5541
STANDARDS & TRACEABILITY
NSN5320-00-117-6936
FLIS · NSN 5320-00-117-6936 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
length: 1/8", diameter: 3/32", countersunk precision head, aluminum alloy, MS20426 series rivet
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
