EMANON PART NO.
MS20427F4-6

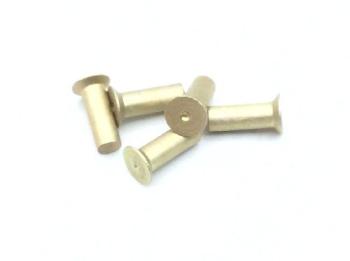

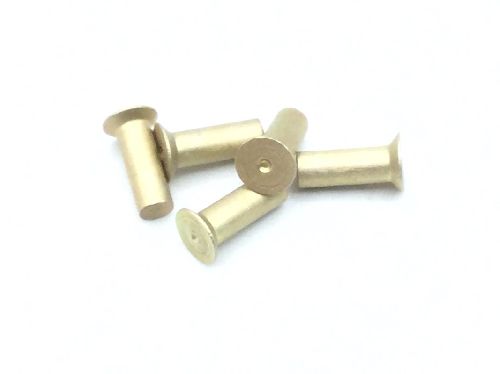

MS20427F4-6 is a rivet in steel comp 302 or steel comp 304, 1/8 diameter and Between 0.365 inches and 0.385 inches length.
Rivet
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.125 in (1/8)
LENGTHBetween 0.365 inches and 0.385 inches
GRIP0.188 in
HEAD & SHANK
HEADFlush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
HEAD DIAMETER0.201–0.236 in
SHANK STYLED9 straight
SHANK DIAMETER0.124–0.128 in
MATERIAL & FINISH
MATERIALSteel comp 302 or steel comp 304
MATERIAL SPECQQ-W-423,COND A — FED SPEC
MECHANICAL
SHEAR STRENGTH65,000 psi
STANDARDS & TRACEABILITY
NSN5320-00-118-1973
GOVERNING STANDARDMS20427F4-6
FLIS · NSN 5320-00-118-1973 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
length: 3/8, diameter: 1/8", countersunk head, corrosion resistant steel, roughly 660 pieces per pound, MS20427 series rivet
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
ALSO KNOWN AS
MS20427F46
