EMANON PART NO.
MS51958-61B

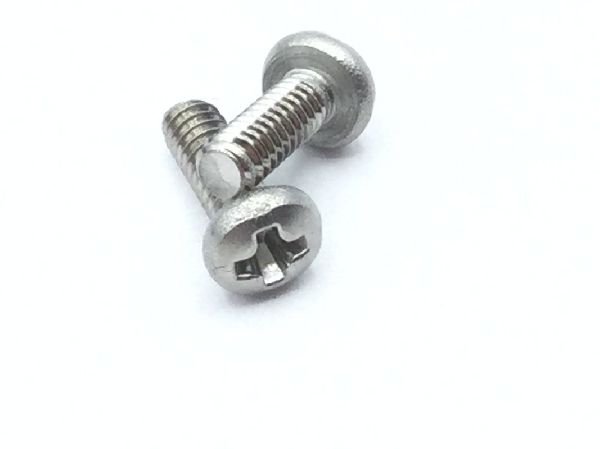

MS51958-61B is a screw in steel comp 304 or steel comp 302, oxide finish, 0.190 INCHES diameter and 3/8 length.
Screw
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.190 in
LENGTH0.375 in (3/8)
THREAD LENGTHMinimum 0.282 in; maximum 0.375 in
THREAD
THREAD10-32
HEAD & DRIVE
HEADPan
HEAD HEIGHTMinimum 0.122 in; maximum 0.133 in
HEAD DIAMETER0.357–0.373 in
MATERIAL & FINISH
MATERIALSTEEL COMP 304 OR STEEL COMP 302
FINISHOXIDE
MECHANICAL
TENSILE STRENGTH80,000 psi
STANDARDS & TRACEABILITY
NSN5305-01-017-1587
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it
Length: 3/8", thread: 10-32, pan head, fine thread, black oxide, 18-8 stainless steel, MS51958 series screw
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
ALSO KNOWN AS
MS5195861B
