EMANON PART NO.
NAS1352C4-12
NAS1352C4-12 is a screw in steel, passivate finish, 0.250 INCHES diameter and 3/4 length.
Screw

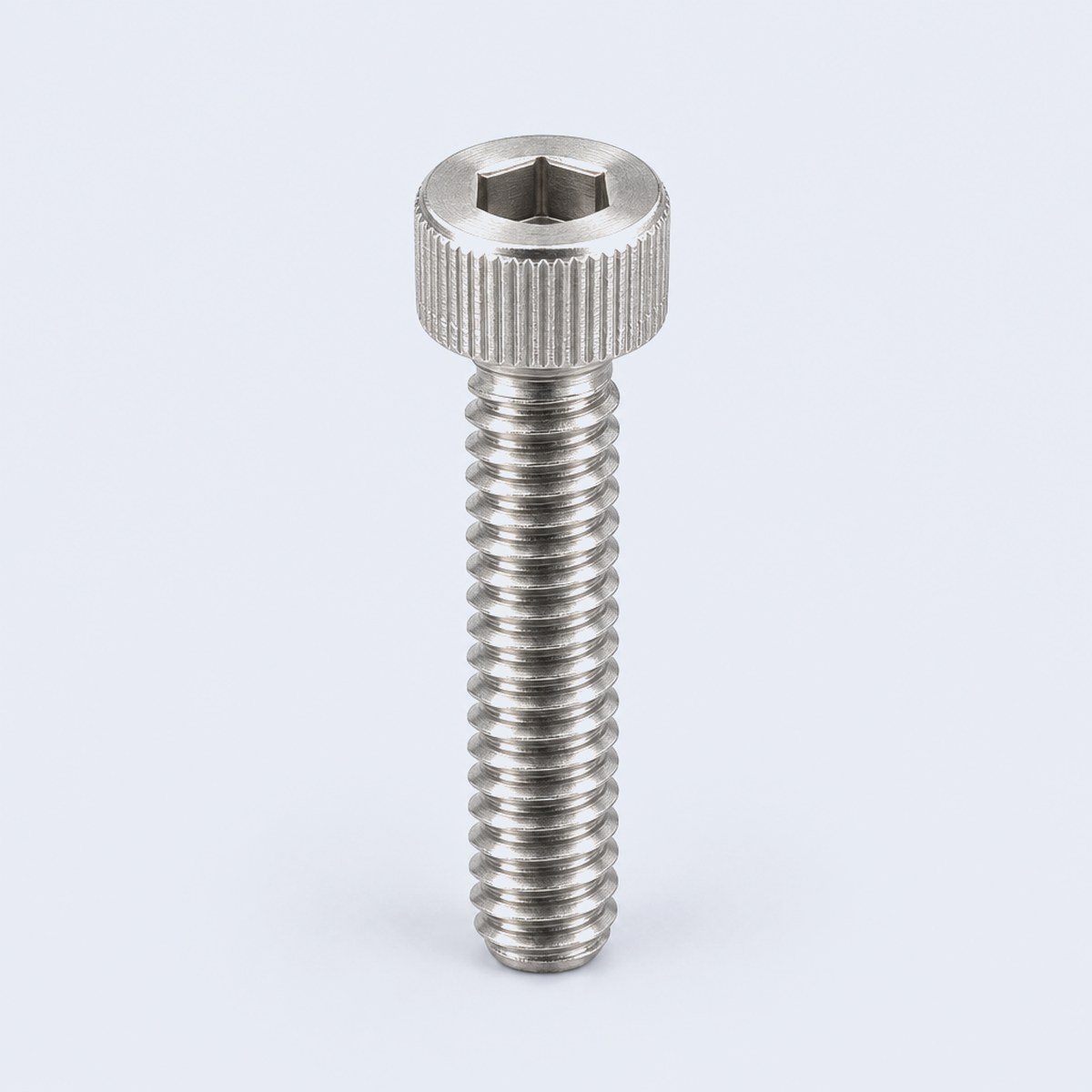

REFERENCE IMAGEReference image — representative of the type, not the exact part; verify dimensions per specification.
SPECIFICATIONS
KEY DIMENSIONS
DIAMETER0.250 in
LENGTH0.750 in (3/4)
THREAD
THREAD1/4-20
HEAD & DRIVE
HEADFlat chamfer
MATERIAL & FINISH
MATERIALSteel
FINISHPassivate
FINISH SPECQQ-P-35
MECHANICAL
TENSILE STRENGTH80,000 psi
HARDNESS≥80 HRB
STANDARDS & TRACEABILITY
NSN5305-01-237-2136
GOVERNING STANDARD80205-NAS1352
ALTERNATE PART NUMBERSMS16995-50
FLIS · NSN 5305-01-237-2136, 5305-01-382-6019 · retrieved 2026-08-07
DOCUMENTS
✓Certificate of Conformance — included with every order
No drawing on file — request it
Fastener Length: 3/4", Thread: 1/4-20, Head Width: 3/16", Thread Length: 3/4", NAS1352 series screw
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
