EMANON PART NO.
MS16562-239
MS16562-239 is a pin in steel comp 410 overall or steel comp 420 overall, passivate overall finish, 0.194 inches minimum and 0.199 inches maximum diameter and 1/2in length.
Pin
SPECIFICATIONS
KEY DIMENSIONS
DIAMETERMinimum 0.194 in; maximum 0.199 in
LENGTH1/2in
MATERIAL & FINISH
MATERIALSteel comp 410 overall or steel comp 420 overall
FINISHPassivate overall
STANDARDS & TRACEABILITY
NSN5315-00-587-2705
DOCUMENTS
✓Certificate of Conformance & test reports available for most products (standard cert fees apply)
No drawing on file — request it

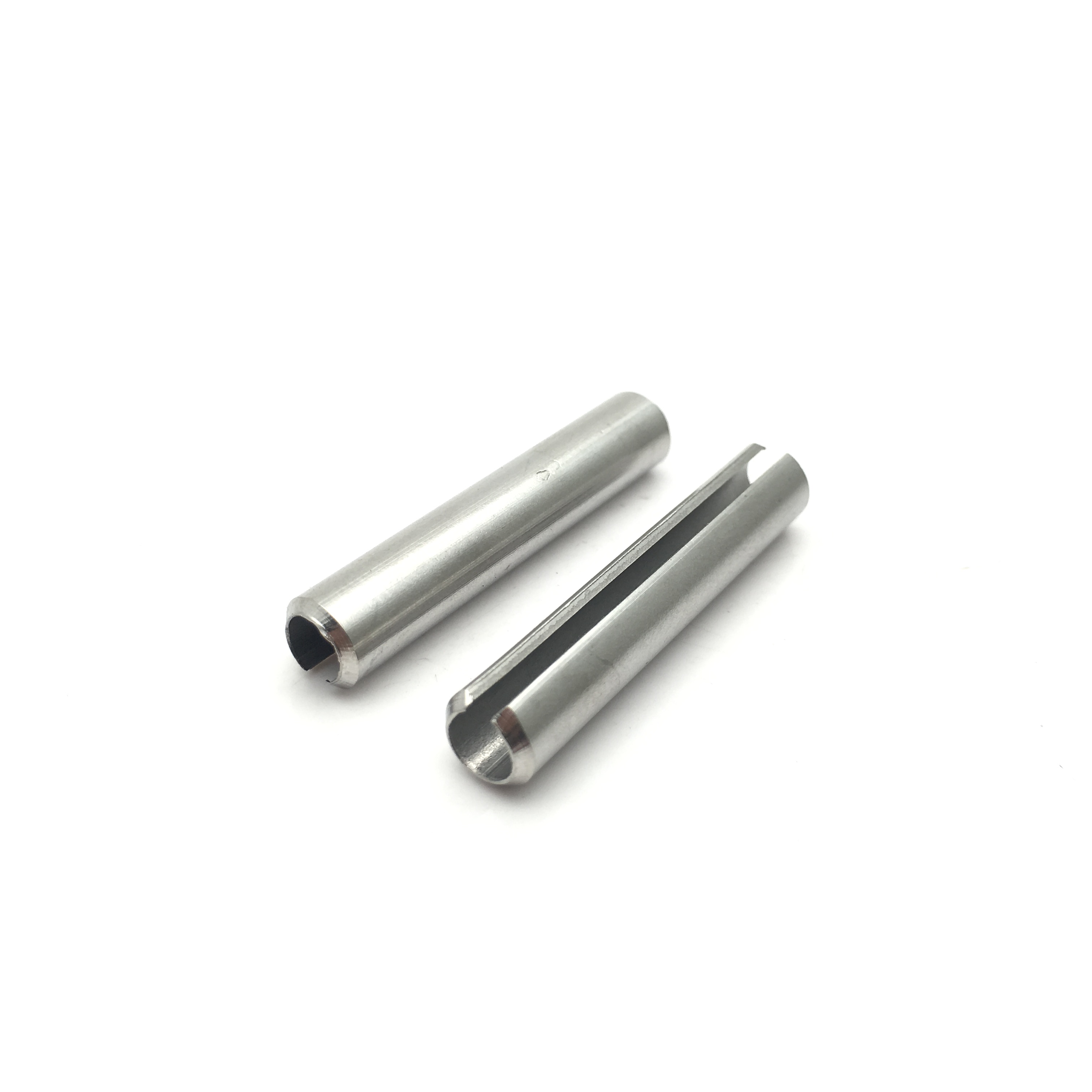

MS16562-239 Spring Pin
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
ALSO KNOWN AS
MS16562239
