EMANON PART NO.
MS15795-807
MS15795-807 is a washer in steel and passivate finish.
Washer · listed as MS15795-807 TERM LUG

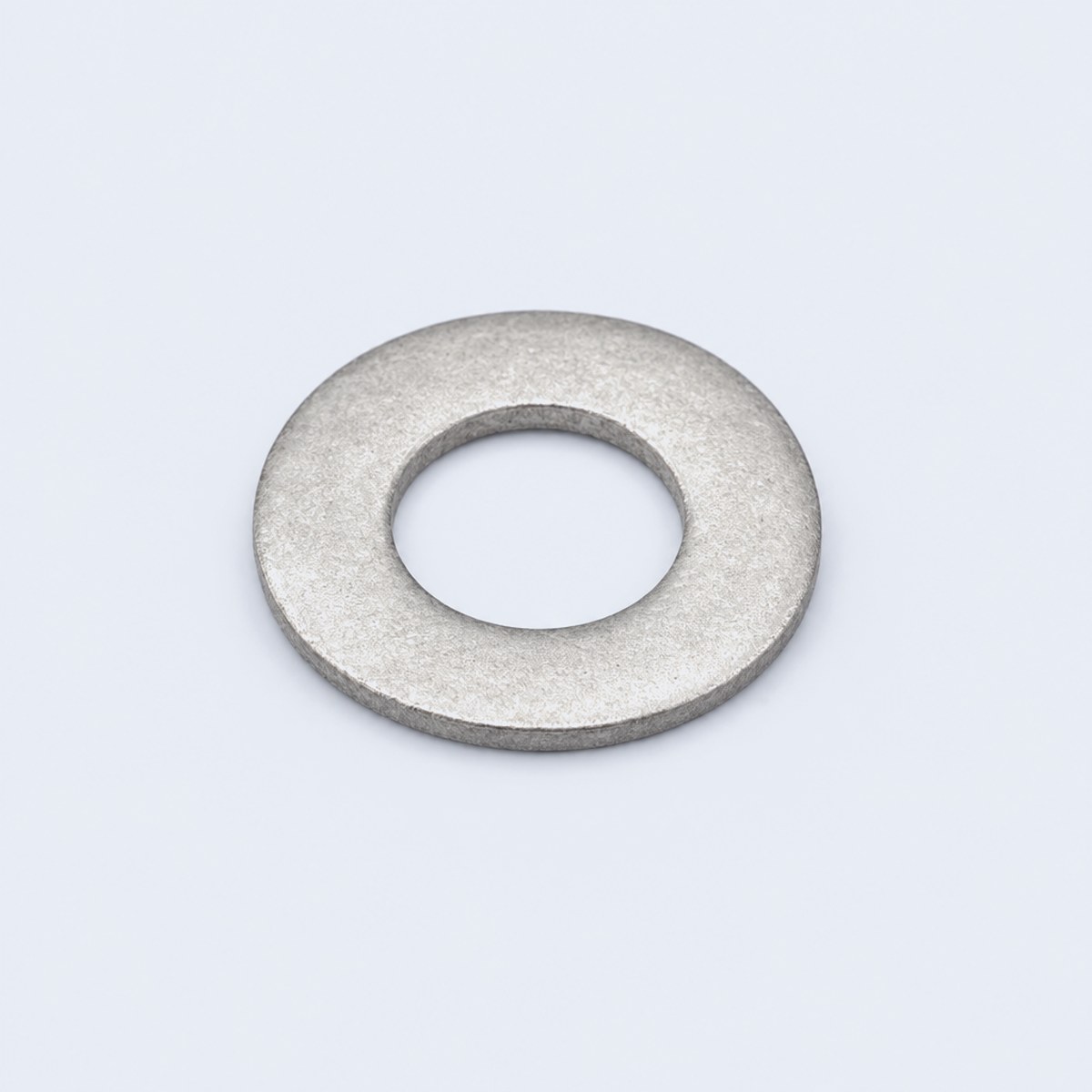

REFERENCE IMAGEReference image — representative of the type, not the exact part; verify dimensions per specification.
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.188
OUTSIDE DIAMETER0.375
THICKNESS0.036–0.065 in
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALSteel
MATERIAL SPECQQ-S-763
FINISHPassivate
FINISH SPECQQ-P-35
STANDARDS & TRACEABILITY
NSN5310-00-619-1148
FLIS · NSN 5310-00-965-1806 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance — included with every order
No drawing on file — request it
Inner diameter: 0.188", outer diameter: 0.375", general purpose washer, stainless steel, MS15795 series washer
