EMANON PART NO.
MS15795-808

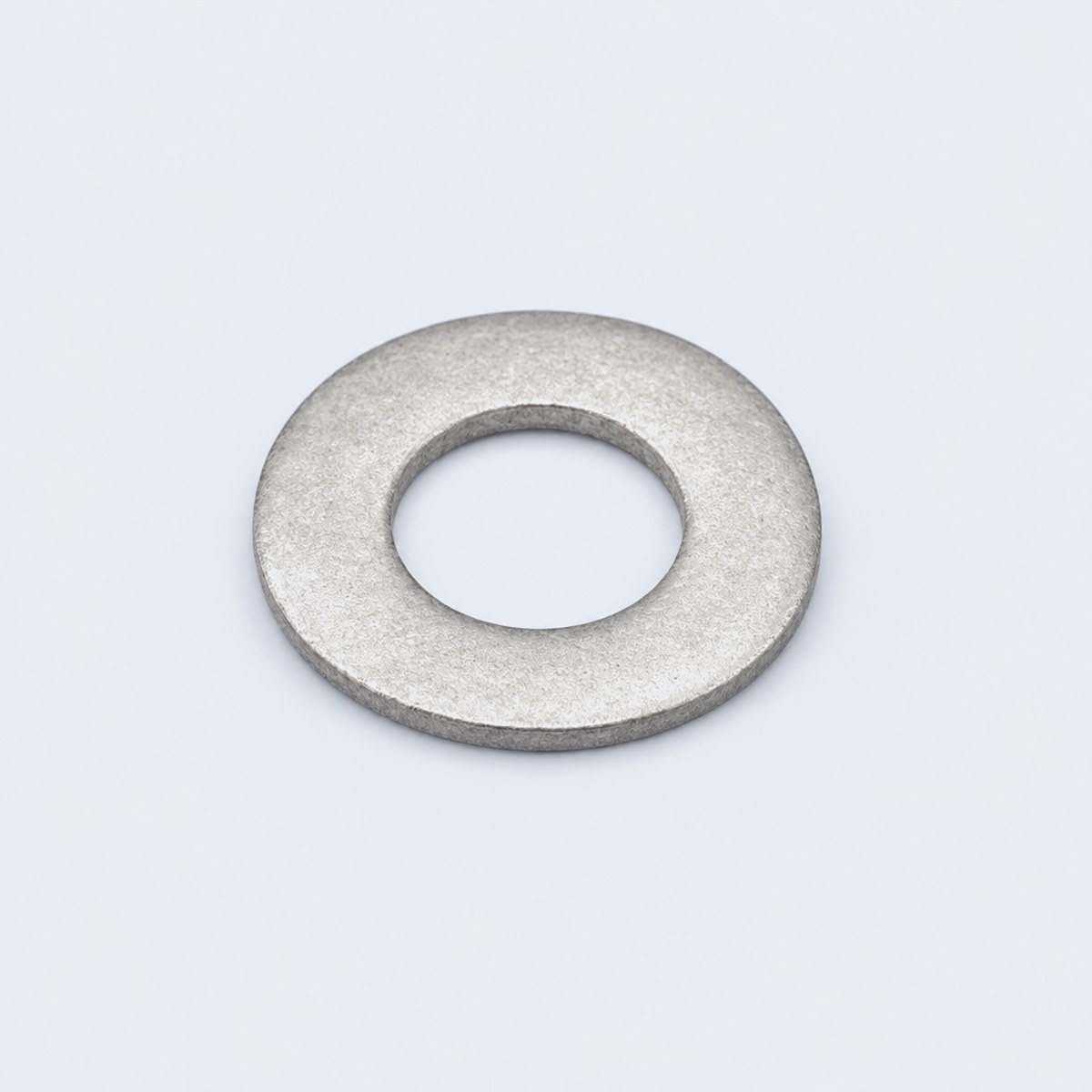

MS15795-808 is a washer in steel and passivate finish.
Washer · listed as MS15795-808 CLAMP
REFERENCE IMAGEReference image — representative of the type, not the exact part; verify dimensions per specification.
SPECIFICATIONS
KEY DIMENSIONS
INSIDE DIAMETER0.214–0.227 in
OUTSIDE DIAMETER0.433–0.453 in
THICKNESS0.036–0.065 in
SHAPE
PERIPHERAL SHAPERound
CENTER HOLE SHAPERound
CROSS-SECTIONAL SHAPERectangular
MATERIAL & FINISH
MATERIALSteel
MATERIAL SPEC66 FED STD ALL MATERIAL RESPONSES
FINISHPassivate
FINISH SPECQQ-P-35
STANDARDS & TRACEABILITY
NSN5310-00-619-1148
FLIS · NSN 5310-00-619-1148 · retrieved 2026-08-08
DOCUMENTS
✓Certificate of Conformance — included with every order
No drawing on file — request it
Inner diameter: 0.219 outer diameter: 0.438", general purpose washer, corrosion resistant steel, MS15795 series washer
Emanon is a stocking distributor — quality-system certifications are held by the certified manufacturers we source from, not by Emanon. Every shipment carries manufacturer certifications and full lot traceability.
